Connecting the R-cube to your system:
For receivers and integrated amplifiers the R-cube inputs can be connected to the pre-amp outputs and the R-cube outputs can be connected to the amplifier inputs, with the bypass switch open or the jumpers removed. If there are no pre-amp outputs and amplifier inputs, a tape monitor loop can be used with the R-cube inputs connected to the tape outputs and the R-cube outputs connected to the tape inputs. For component systems the R-cube inputs can be connected to the pre-amp outputs and the R-cube outputs can be connected to the amplifier inputs or an equalizer, etc. If you use a single source of appropriate output voltage and an amplifier for a minimalist system, the R-cube inputs can be connected to the source outputs and the R-cube outputs can be connected to the amplifier inputs.

Note:
There are situations where the system gain can be too high and cause clipping, such as; A CD player with selectable output of 4 volts connected to a CD input that is designed for 2 volts, connecting a standard 2 volt output CD player to line level inputs that are designed for an approximately 150mv signal, or any adjustable source with the output turned up too high. Since many amplifiers acheive full rated output with only 1 volt of input, any of these situations can cause clipping at worst or a limited useful range of volume control at best. In these cases output voltages can be turned or selected down where possible or in-line attenuators may be installed.


MSRP $350.00

ELECTRICAL SPECIFICATIONS
Bandwidth for measurements (unless noted otherwise)
Attenuation Range (192 steps)
Attenuation Step Size
Attenuation Matching
Total Harmonic Distortion + Noise (VIN = 2Vrms, f = 1kHz)
Input Resistance
Input Voltage Range (without clipping)
Input Capacitance
Output Drive Capability
Output Noise (VIN = AGND, Gain = 0dB)
Short Circuit Current
Interchannel Crosstalk (f = 1kHz)
Unity-Gain Bandwidth, Small Signal
Power supply

10Hz to 20kHz
-95.5dB to 0dB
0.5 dB
+ or - 0.05 dB
0.0002 %
10,000 Ohms
2.5 Vrms
3 pF
600 Ohm load
2.5 uVrms
50 mA
-130 dBFS
10 mHz
120 VAC, 5W, 60Hz wall transformer

PHYSICAL DIMENSIONS
R-cube
R-cube remote
R-cube power supply

3" cube
4" x 1.25" x .5"
2.5" x 2" x 1.5"

USER INTERFACE
R-cube front face
Volume indicator
(+) Button
(-) Button
Remote control detector

Single LED, 192 color spectrum from Blue to Red (lowest to highest).
Tactile brushed aluminum pushbutton switch, increases volume and shifts display color towards red.
Tactile brushed aluminum pushbutton switch, decreases volume and shifts display color towards blue.
Infrared.

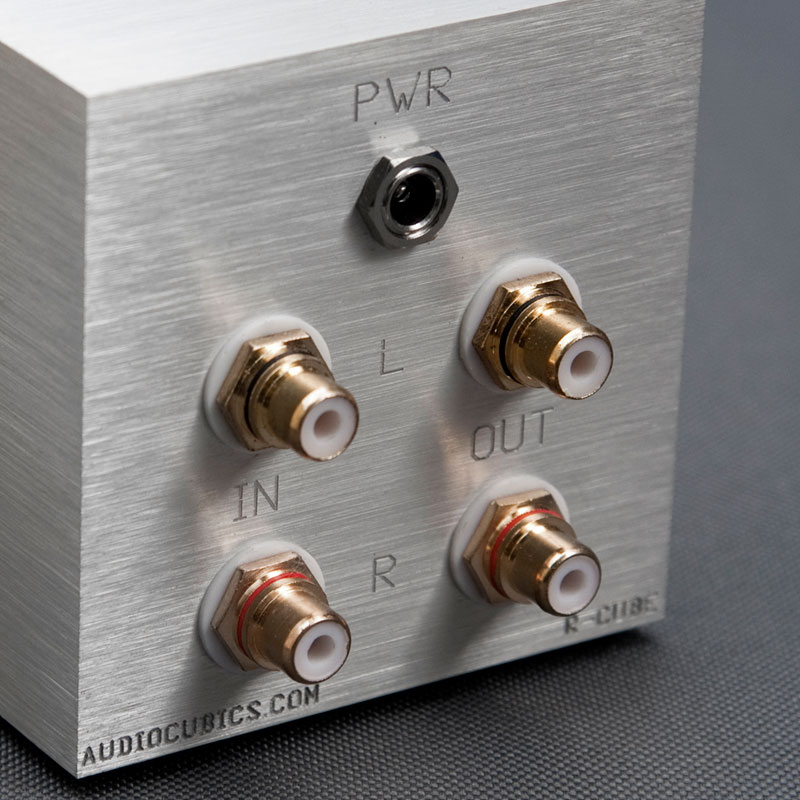

R-cube rear face
Pwr
L IN
R IN
L OUT
R OUT

Input jack for R-cube power supply.
Left channel input, gold/teflon RCA jack.
Right channel input, gold/teflon RCA jack.
Left channel output, gold/teflon RCA jack.
Right channel output, gold/teflon RCA jack.

R-cube remote
(Mute) Button
(+) Button
(-) Button
Battery

Tactile brushed aluminum pushbutton switch, mutes volume and changes display color to flashing blue.
Tactile brushed aluminum pushbutton switch, increases volume and shifts display color towards red.
Tactile brushed aluminum pushbutton switch, decreases volume and shifts display color towards blue.
CR2032 Lithium
